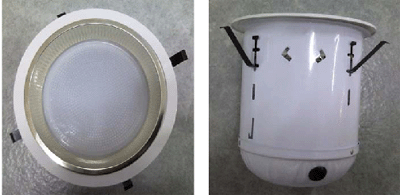

| CLDL6CW-18 |
| This product can replace local lighting in various places, such as distribution stores, restaurants, exhibition halls, and airports, and has the following features: |
| |
- Excellent optical efficiency compared with the existing lights
- Maintenance/repair expenses saved thanks to longevity
- Energy saving and contributing to environmental protection, due to low electric power consumption
- Eco-product not containing hazardous substances, such as mercury, filament, and gas. |
| |
| 1. Dimension |
 |
| |
| 2. SPECIFICATION |
| Description |
Unit |
Specification |
| Power consumption with SMPS |
W |
18W(20W) |
| Dimensions |
¥ÕxH |
¥õ190 x 195 |
| Color Temp |
K |
6500~7000K |
| Luminous Flux |
lm |
1000 |
| Efficiency |
lm/W |
55 |
| llluminance(at1 m) |
Lux |
400 |
| Input Voltage |
Ra |
100~240V AC, 50/60Hz |
| Life Time |
Hr |
70,000 (Reference Usable Initial lm 50% ) |
| Hr |
50,000 (Reference Usable Initial lm 70% ) |
|
| |

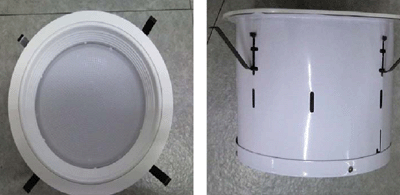

| CLDL8CW-25 |
| This product can replace local lighting in various places, such as distribution stores, restaurants, exhibition halls, and airports, and has the following features: |
- Excellent optical efficiency compared with the existing lights
- Maintenance/repair expenses saved thanks to longevity
- Energy saving and contributing to environmental protection, due to low electric power consumption
- Eco-product not containing hazardous substances, such as mercury, filament, and gas.
|
| |
| 1. Dimension |
 |
| |
| 2. SPECIFICATION |
| Description |
Unit |
Specification |
| Power consumption with SMPS |
W |
24W(30W) |
| Dimensions |
¥ÕxH |
¥õ230 x 160 |
| Color Temp |
K |
6500~7000K |
| Luminous Flux |
lm |
1300 |
| Efficiency |
lm/W |
55 |
| llluminance(at1 m) |
Lux |
500 |
| Input Voltage |
Ra |
100~240V AC, 50/60Hz |
| Life Time |
Hr |
70,000 (Reference Usable Initial lm 50% ) |
| Hr |
50,000 (Reference Usable Initial lm 70% ) |
|
| |
  |
|
|
|
