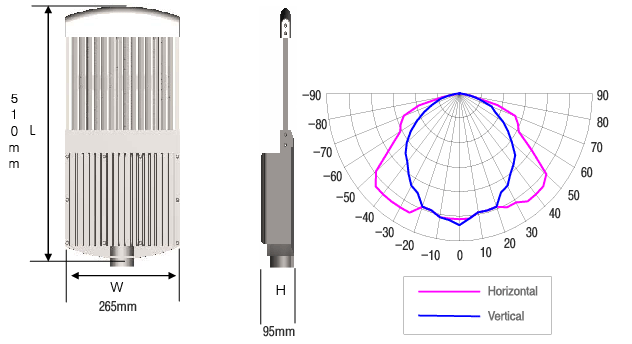

| CLS65-2W-510 |
| |
| 1. Product Info |
| The security light produced in the COH (Chip On Heat Sink) module with outstanding heat radiation attributes has the following features |
| |
- Heat discharge has been maximized as an independent LED array bar structure, and the existing heat radiation problem has been
hugely improved: Longevity and high reliability are realized.
- The apparatus part, except for LED array bar of high reliability product meeting complete waterproof index 67, is made or plastics,
and thus, about more than 50% of weight has been reduced than the existing lamp apparatus
- Repair is easier with an independent LED array bar. |
| |
 |
| |
| 2. SPECIFICATION |
| Description |
Unit |
Specification |
| Input Voltage |
V |
100~240V AC, 50/60Hz |
| LED Power consumption |
W |
50W(65W) |
| Efficiency |
lm/W |
85(66)lm/W |
| Luminous Flux |
lm |
4300lm |
| Brightness on the road at 6m |
Cd/㎡ |
1.87 Cd/m2 |
| uniformity of illuminance at 6m |
% |
53.50% |
| Color Temperature |
K |
5500~7000K |
| Life Time |
Hr |
70,000 (Reference Usable Initial lm 50% ) |
| Hr |
50,000 (Reference Usable Initial lm 70% ) |
|
| |

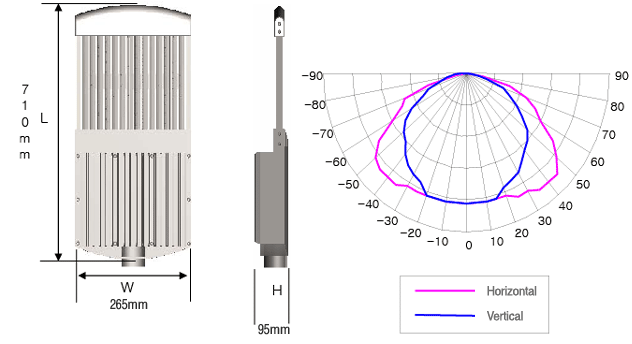

| CLS120-2W-710
|
| 1. Product Info |
| Heat discharge has been maximized as an independent LED array bar structure, and the existing heat radiation problem has been hugely improved: Longevity and high reliability are realized. |
| |
- Heat discharge has been maximized as an independent LED array bar structure, and the existing heat radiation problem has
been hugely improved: Longevity and high reliability are realized
- The apparatus part, except for LED array bar of high reliability product meeting complete waterproof index 67,
is made or plastics, and thus, about more than 50% of weight has been reduced than the existing lamp apparatus.
- Repair is easier with an independent LED array bar. |
| |
 |
| 2. SPECIFICATION |
| Description |
Unit |
Specification |
| Input Voltage |
V |
100~240V AC, 50/60Hz |
| LED Power consumption |
W |
100W(120W) |
| Efficiency |
lm/W |
85(72)lm/W |
| Luminous Flux |
lm |
8630lm |
| Brightness on the road at 6m |
Cd/㎡ |
1.96 Cd/m2 |
| uniformity of illuminance at 6m |
% |
64.80% |
| Color Temperature |
K |
5500~7000K |
| Life Time |
Hr |
70,000 (Reference Usable Initial lm 50% ) |
| Hr |
50,000 (Reference Usable Initial lm 70% ) |
|
| |
  |
